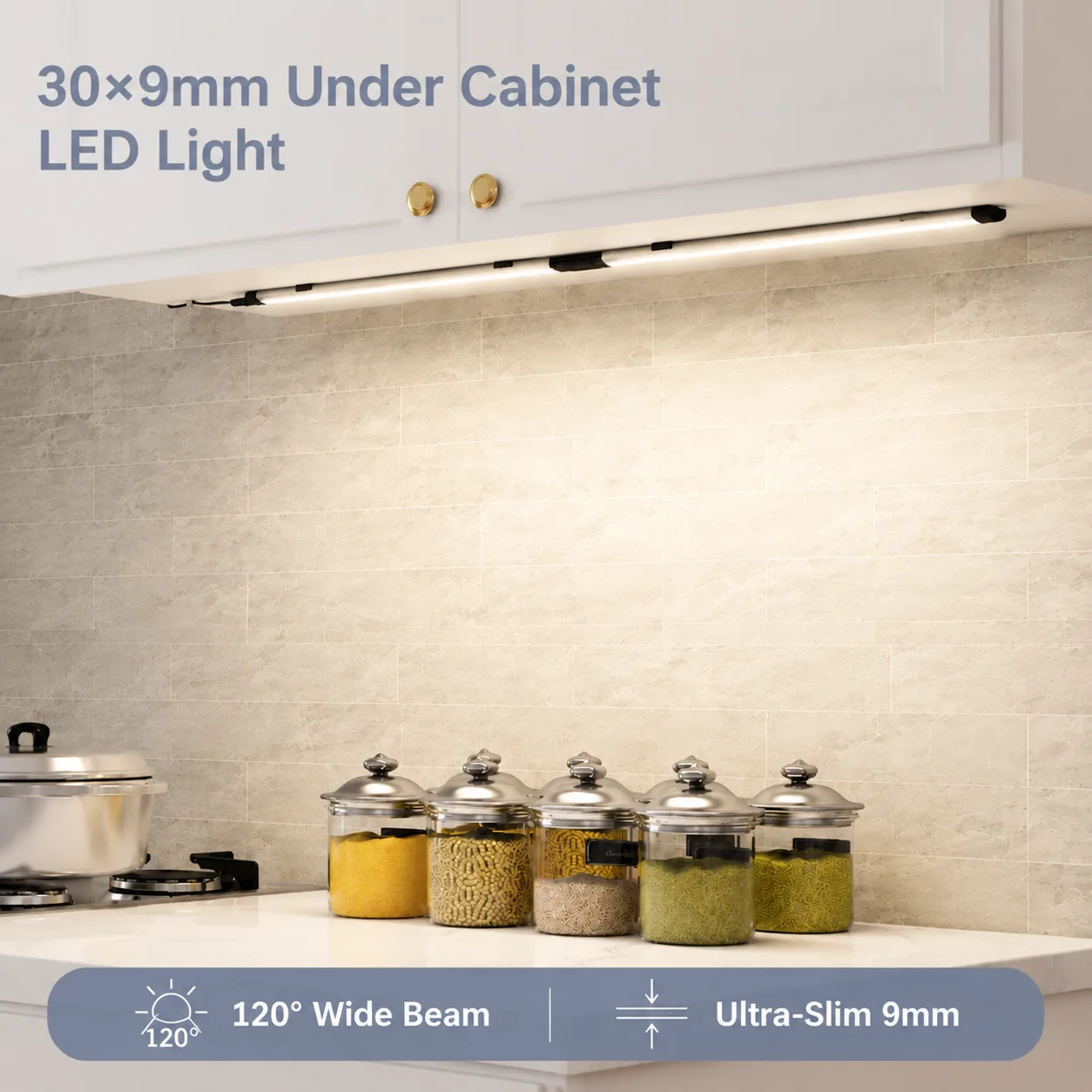

Slim Profile 30x9mm Under Cabinet LED Lighting
Slim 30x9mm LED light bar with SANAN 2835SMD chips, 120° beam angle, PC+aluminum housing. Available in 200mm-1500mm lengths. 12V/24V/10-30V wide voltage input. Ideal for under-cabinet, shelf, and display case lighting. 50,000hrs lifespan, 2-year warranty. OEM lengths available.
- Light Customization
- Custom per Drawing
- Custom per Sample
Specifications
Specifications
| Dimensions (W×H) | 30mm × 9mm |
|---|---|
| Length Options | 200mm / 300mm / 500mm / 700mm / 1000mm / 1500mm |
| Material | PC + Aluminum |
| LED Source | SANAN 2835SMD |
| Beam Angle | 120° |
| Luminous Output | 400–2000lm (varies by length) |
| Color Temp | 2700–6500K (Warm / Natural / Daylight / Cool White) |
| Voltage | 12V / 24V / 10–30V (selectable) |
| Cable | 500mm flat 20AWG wire |
| IP Rating | IP20 (Indoor Use Only) |
| Lifespan | 50,000+ hours |
Product Details
Product Overview

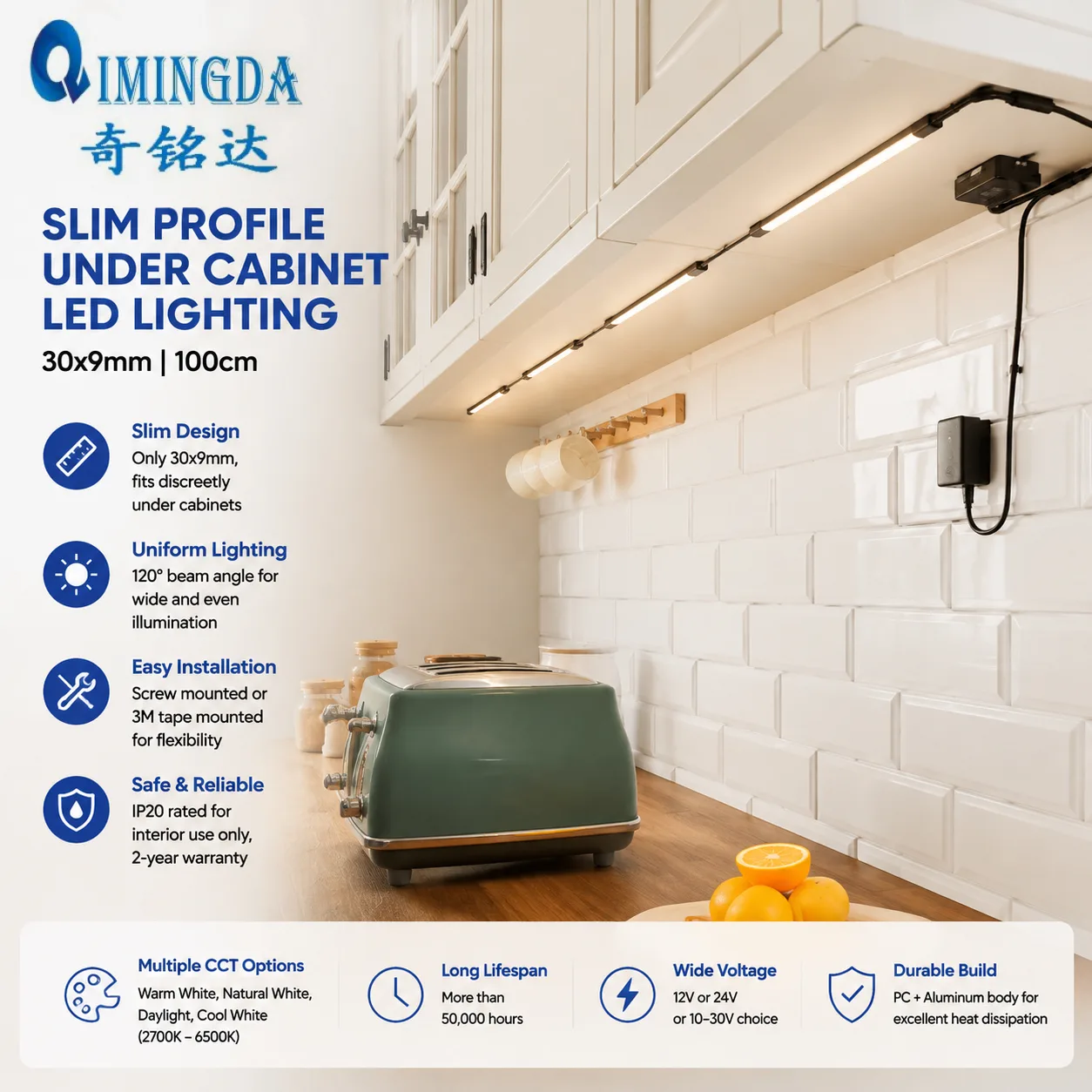

Ultra-slim 30×9mm LED light bar designed for under-cabinet and shelf lighting. Features SANAN 2835SMD chips, 120° wide beam angle, and PC+aluminum construction for durability.
Key Features
Ultra-slim profile: just 9mm thick for discreet installation
Premium SANAN 2835SMD LEDs with 50,000hrs+ lifespan
120° wide beam for even illumination
Multiple color temps: Warm White / Natural White / Daylight / Cool White
Wide voltage: 12V / 24V / 10–30V options
IP20 rated for indoor use
2-Year warranty
Installation

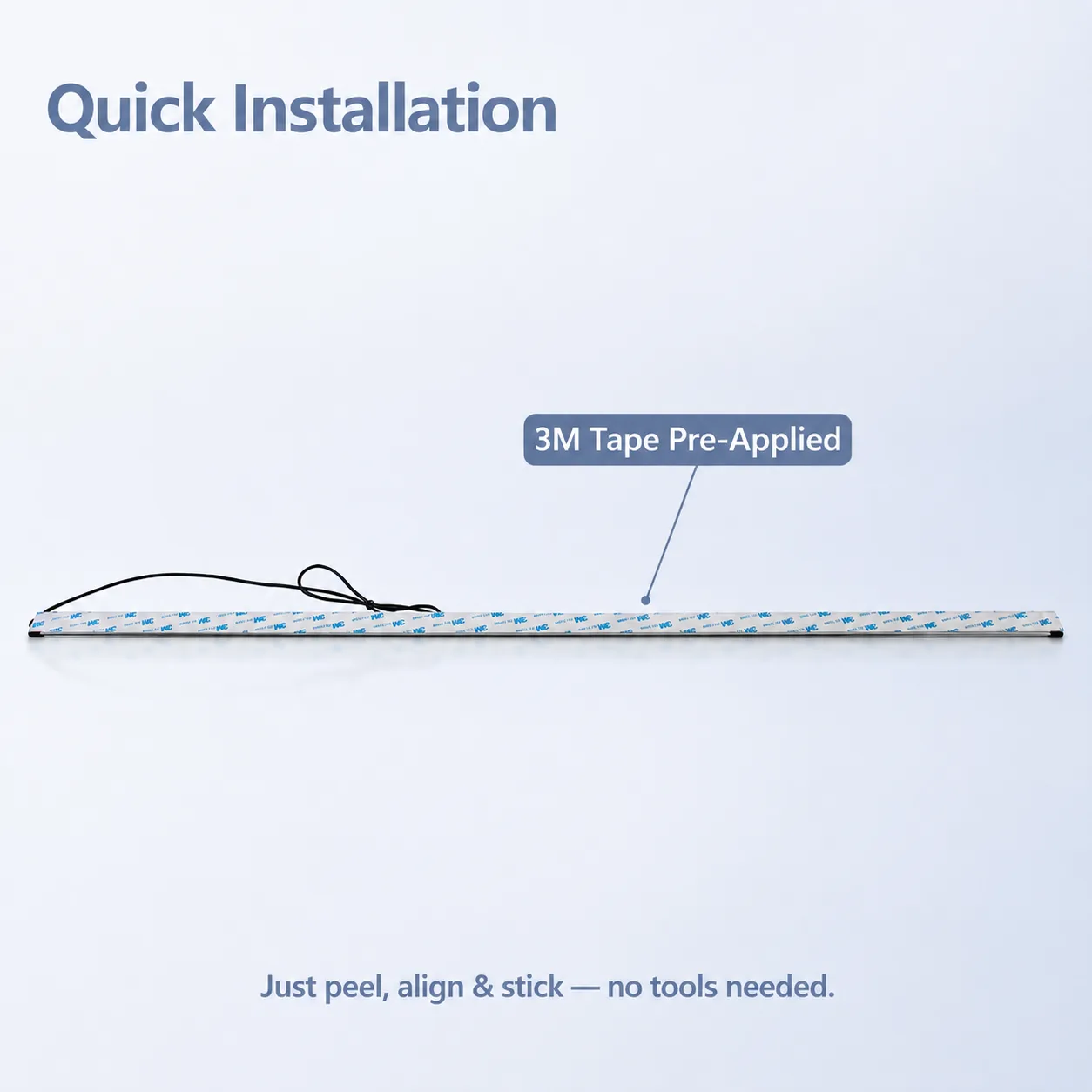

Rear wiring with 500mm flat 20AWG cable. Mount via screws or 3M tape – only a screwdriver needed.
Applications
Kitchen under-cabinet lighting, display cases, shelves, wardrobes, commercial trucks, and indoor display lighting.
