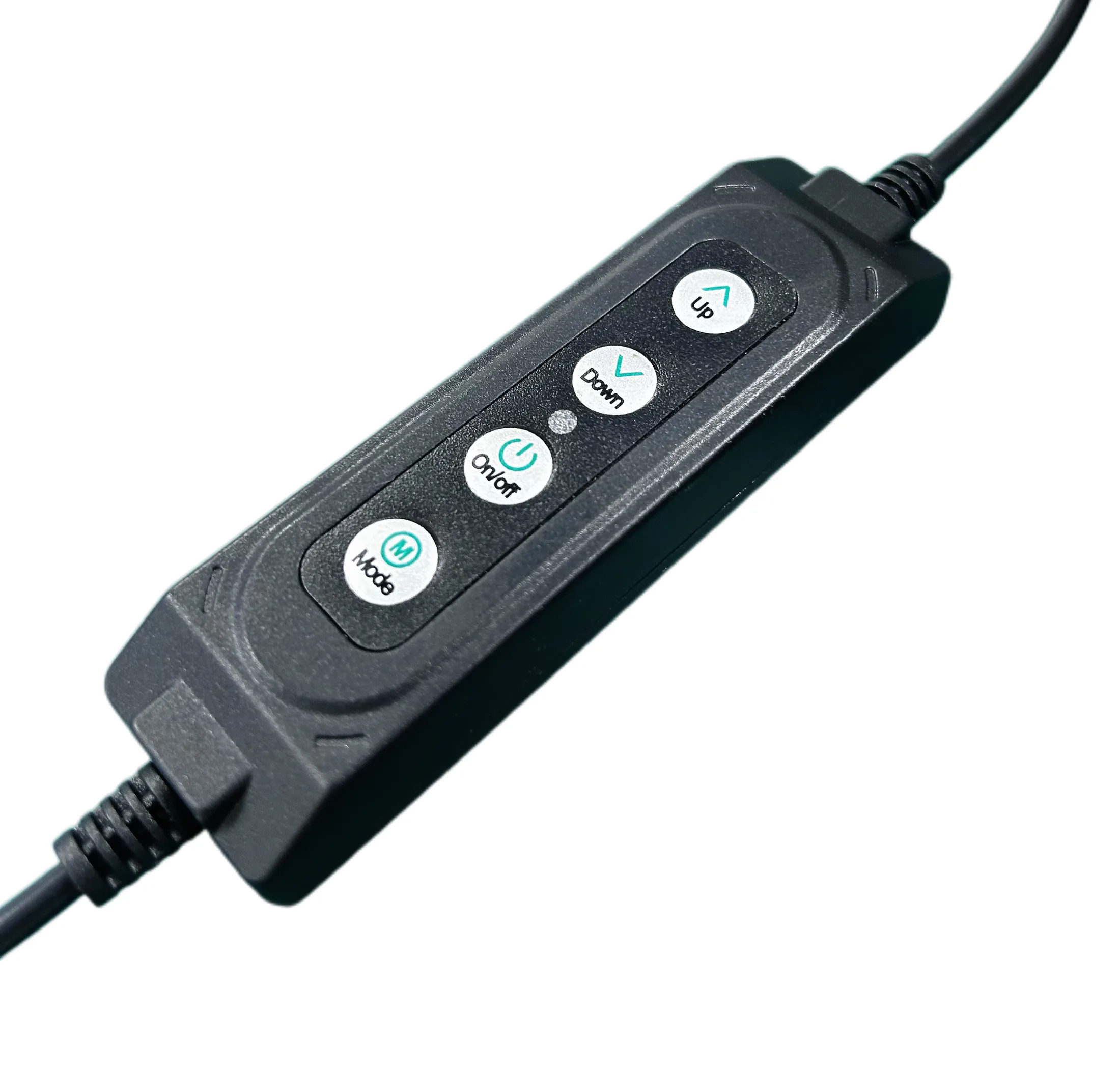

12-24V Button Dimmer Switch with Multi-Color Modes, PWM Dimming for LED Lights – Crystal Style
Model QMD-GNS-Dual Color Dimmer Switch
12-24V PWM button dimmer with multi-color modes. Smooth 10%-100% dimming, flicker-free. Crystal style design. Custom plugs available.
- Light Customization
- Custom per Drawing
- Custom per Sample
Specifications
Specifications
| Item | Spec |
|---|---|
| Voltage | DC 12-24V |
| Dimming | PWM, 10%-100% stepless |
| Temp Range | -50°C ~ 80°C |
| Output | 3-Pin |
| Input | DC5521 / 2-Pin (customizable) |
| Customization | Plug types available upon request |
Product Details
This 12-24V button dimmer switch offers multi-color mode selection in a sleek crystal-style design. PWM technology delivers smooth, flicker-free 10%-100% dimming. The push-button control allows easy brightness adjustment and color mode switching for versatile LED lighting applications. Ideal for residential and commercial projects.
Key Advantages:
Precise Dimming – Stepless control from 10% to 100%.
Multi-Color Modes – Multiple color options at your fingertips.
LED Protection – Surge protection & voltage regulation built in.
Durable – Operates from -50°C to 80°C, indoor/outdoor ready.
Easy Mounting – Compact with built-in slots for quick installation.
Flexible Connectors – DC5521, 2-Pin, 3-Pin, and custom options.
Includes: 1 x Button Dimmer Switch (with connectors as ordered)
Ordering: Specify input/output connector type when placing your order. Custom plugs welcome.
