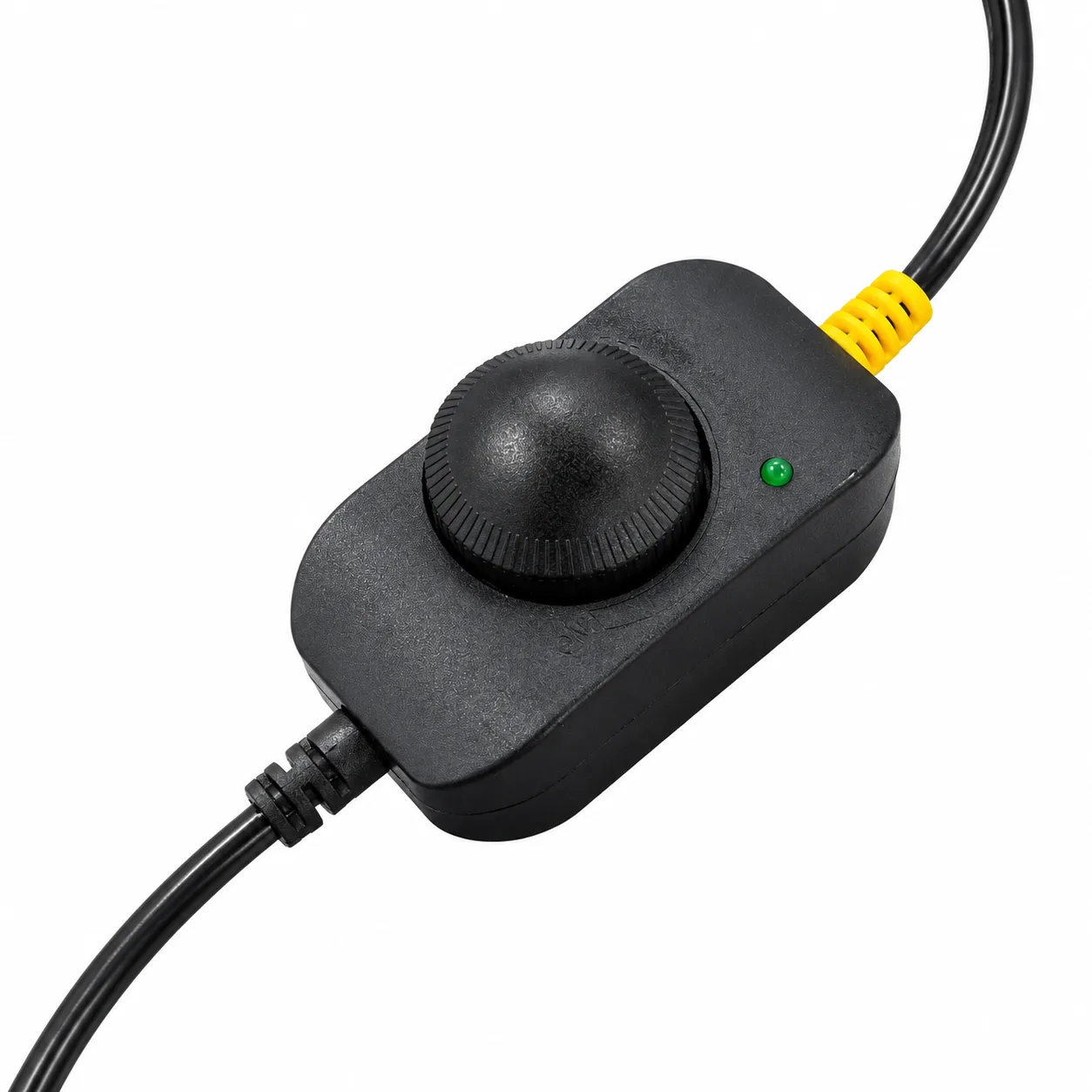

12-24V Rotary Dimmer Switch with Color Switching, PWM Dimming for LED Lights – Custom Plugs
Model QMD-GNS-Dimmer Switch
12-24V PWM rotary dimmer switch with push-button color switching. Smooth 10%-100% stepless dimming, flicker-free, surge-protected. Compatible with dual/single color LED lights. Custom plugs available.
- Light Customization
- Custom per Drawing
- Custom per Sample
Specifications
Specifications
| Product Name | Rotary Dimmer Switch |
|---|---|
| Input Voltage | DC 12V – 24V |
| Dimming Range | 10% – 100% Stepless Continuous Dimming |
| Operating Temperature Range | -50°C ~ 80°C |
| Mounting Method | Mounting slots for easy bracket installation |
| Customization | Plug types and connectors available upon request |
Product Details

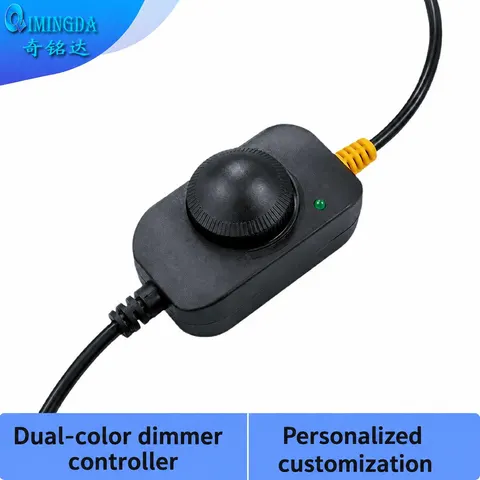

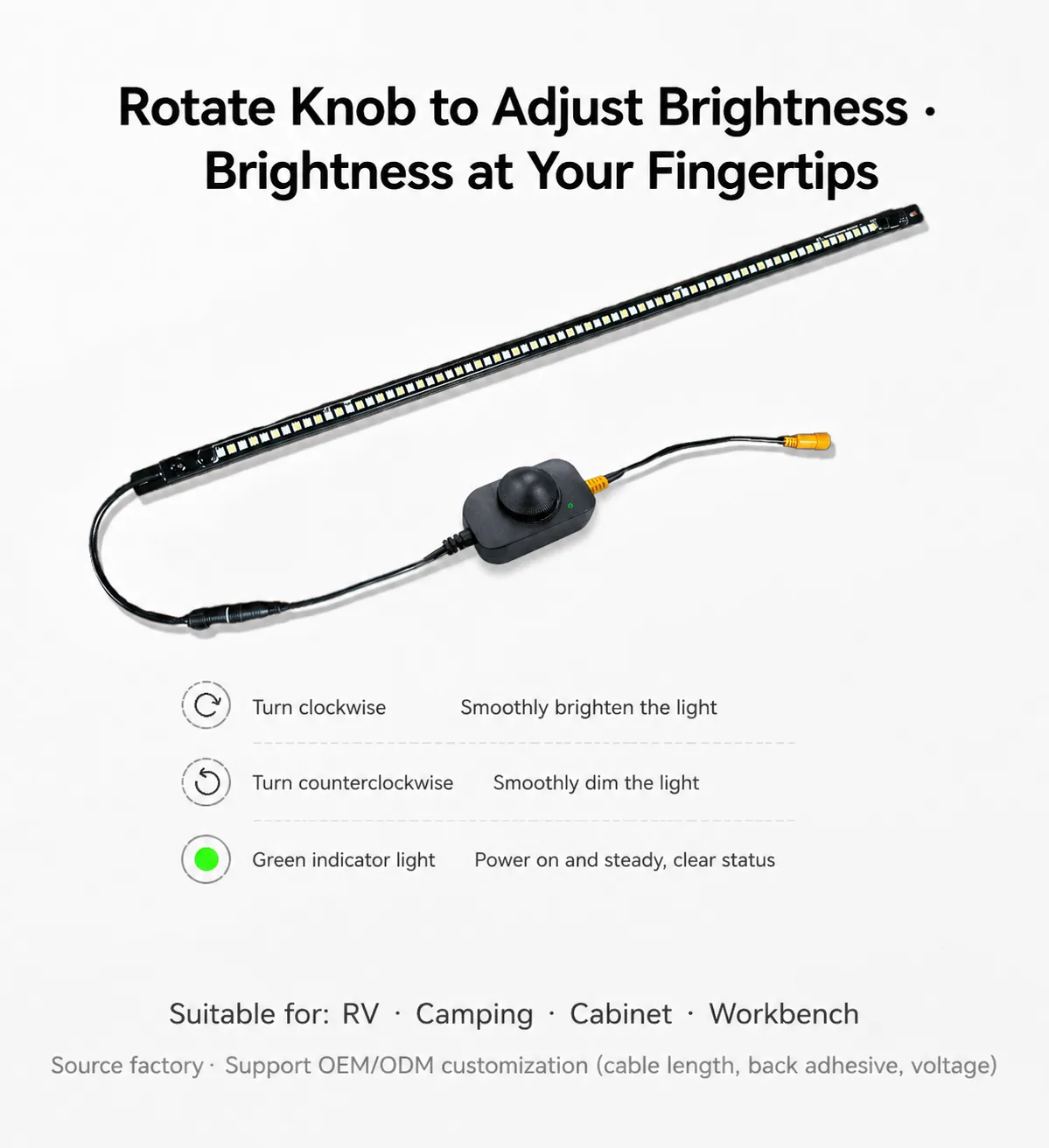

This 12-24V rotary dimmer switch integrates dimming and color temperature control in one unit. PWM technology ensures smooth, flicker-free 10%-100% dimming. Push-button dial enables instant color switching for dual-color LED lights. Ideal for residential and commercial projects.
Key Advantages:

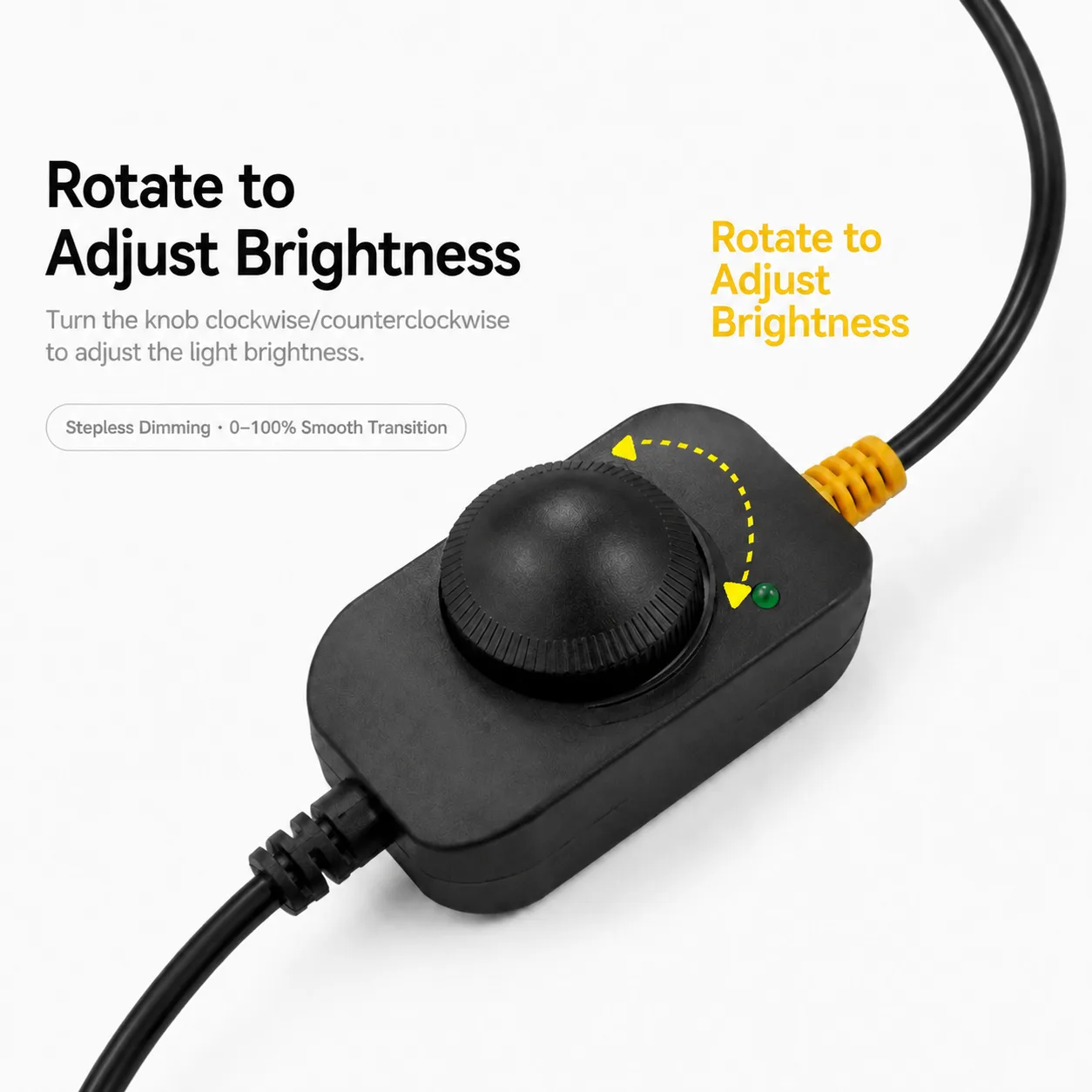

Precise Dimming – Stepless control from 10% to 100%.

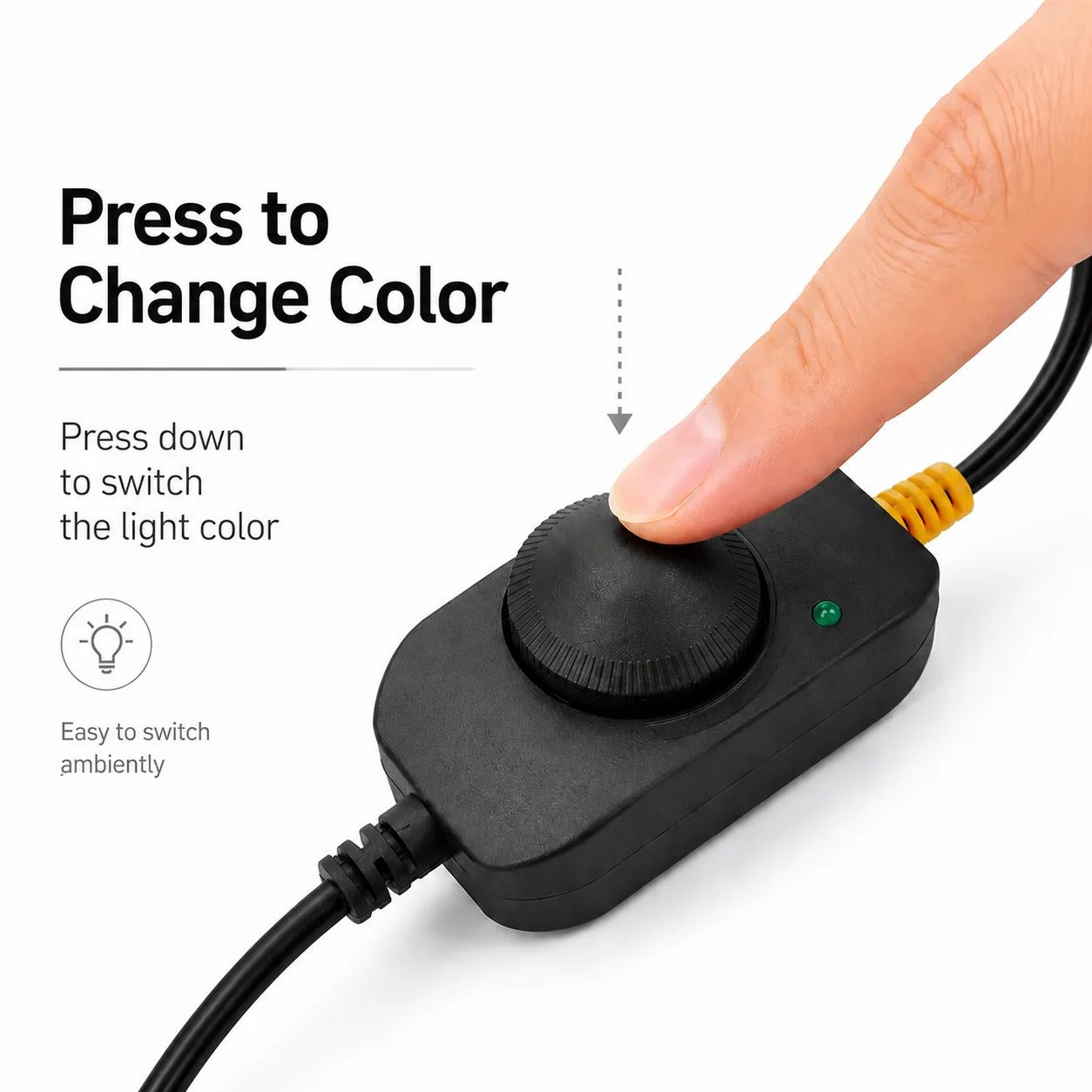

Instant Color Switching – One-press dial for dual-color models.
LED Protection – Surge protection & voltage regulation built in.
Durable – Operates from -50°C to 80°C, indoor/outdoor ready.
Easy Mounting – Compact with built-in slots for quick installation.
Flexible Connectors – DC5521, 2-Pin, 3-Pin, and custom options.
Includes: 1 x Dimmer Switch (with connectors as ordered)
Ordering: Specify input/output connector type when ordering. Custom plugs welcome.
